    For anyone wondering about the wiring from truck to trailer these illustrate the usual 7 pin wiring layout.

    Attachments:

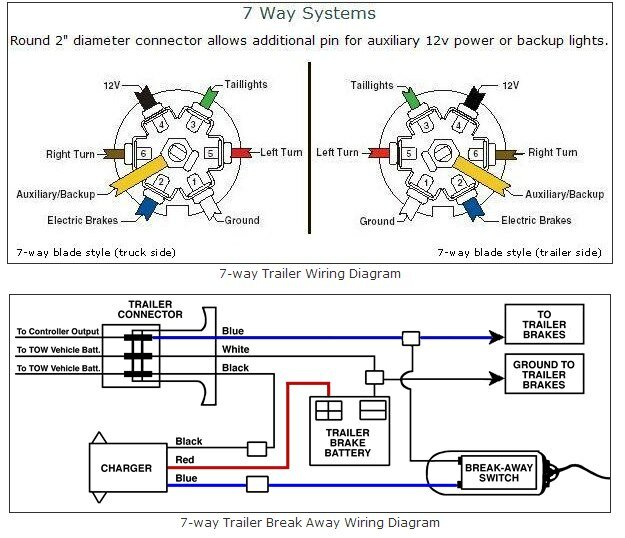

    • Tralier-Diagram

      Tralier-Diagram

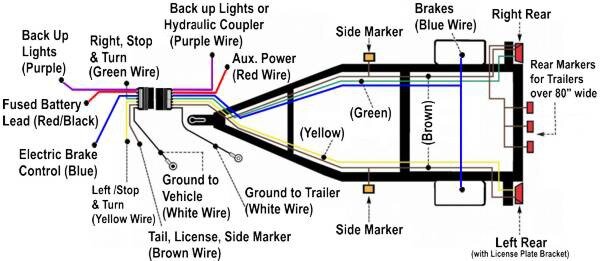

    • trailer-wiring

      trailer-wiring

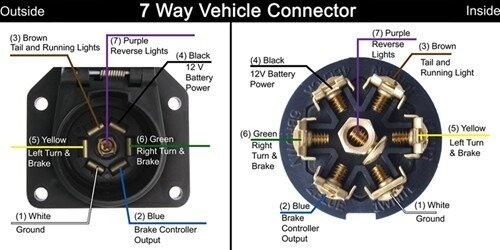

    • 7-way-plug

      7-way-plug
